Product Overview

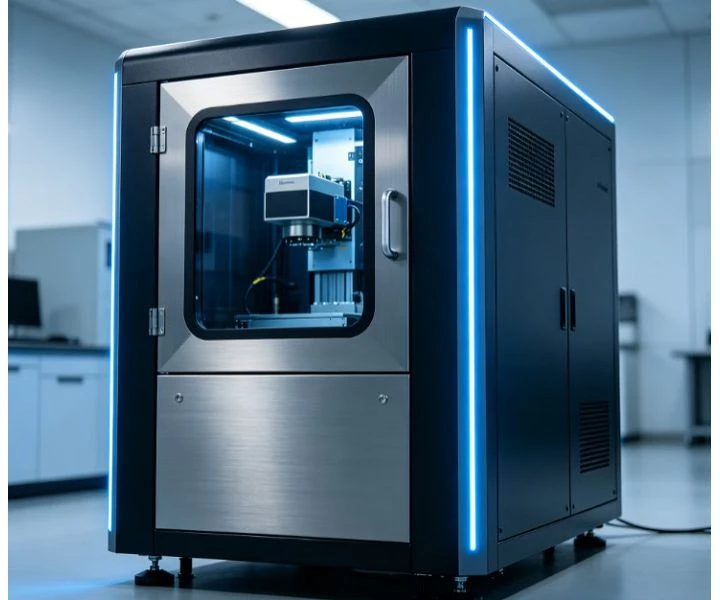

The High Precision Enclosed Fiber Laser Marking Machine is an industrial-grade laser engineering platform built for high-speed, micromachining, and permanent surface modification across conductive metals, engineered polymers, and technical ceramics. Incorporating a fully sealed safety workstation, a high-performance solid-state fiber laser engine, and high-speed digital galvo scanning architectures, this system delivers repeatable part traceability under continuous multi-shift production schedules.
Technical Specifications
|
Parameter Designation |
Industrial Value / Configuration |
|
Laser Core Technology |
Ytterbium-Doped Solid-State Fiber Laser |
|
Power Configurations Available |
20W / 30W / 50W / 60W / 100W |
|
Central Operating Wavelength |
1064 nm |
|
Pulse Repetition Frequency Range |
20 kHz to 200 kHz (Model Dependent) |
|
Beam Quality Factor ($M^2$) |
Less than 1.4 |
|
Standard Processing Fields |
110mm x 110mm / 175mm x 175mm / 300mm x 300mm |
|
Maximum Scan Vector Velocity |
7000 mm/s |
|
Repeat Positioning Accuracy |
Plus or minus 0.002 mm |
|
Minimum Achievable Line Width |
0.01 mm |
|
Minimum Character Font Height |
0.15 mm |
|
Cooling Architecture |
Internal Forced Air Cooling System |
|
Input Operating Voltage |
Single Phase 110V / 220V (50/60Hz Self-Adaptive) |
|
Hardware Communication Interface |
USB / RS232 / RJ45 Ethernet Ports |
|
Supported File Formats (Vector) |
DXF, PLT, AI, SVG |
|
Supported File Formats (Raster) |
BMP, JPG, PNG |
|
Total System Net Weight |
Approximately 120kg to 180kg |
|
Optimal Ambient Working Temperature |
10 to 35 Degrees Celsius |
Main Features & Practical Structural Benefits
Certified Safety Enclosure: Engineered to meet industrial Class 1 isolation parameters, utilizing a fully shielded workstation cabinet with built-in laser radiation shielding windows, automated door interlocks that interrupt emission immediately when opened, and dedicated emergency stop controls.
Sub-Micron Resolution Mechanics: The digital galvanometer scanner utilizes optical encoders to maintain tight geometric tolerances, delivering distortion-free vector curves, micro-text legible under magnification, and flawless barcode rendering.
Maintenance-Free Laser Engine: The solid-state fiber laser architecture operates without internal consumables, gas refills, flashlamps, or routine mirror alignments, yielding an operational service life exceeding 100,000 production hours.
Automation-Capable Control Suite: Driven by robust software that natively processes variable data matrices, automated serialized numbering, timestamping, and external communication handshakes for modern manufacturing Execution Systems.
Material Compatibility & Processing Capacities
Complete Metal Processing
Stainless steel alloys (304, 316, 400 series) via surface annealing or deep engraving.
Carbon steel, high-grade alloy tool steels, and cast iron.
Anodized aluminum, raw aluminum alloys, and aircraft-grade aluminum.
High-conductivity metals including yellow brass, red copper, and precious metals (gold, silver).
Advanced industrial metals including titanium, magnesium alloys, nickel plating, and zinc coatings.
Technical Polymers and Non-Metal Substrates
High-impact engineering plastics including ABS, PVC, and Polycarbonates.
Polyamides (Nylon) and high-density industrial polymers.
High-temperature industrial technical ceramics and metal oxides.
Pre-treated surfaces including painted metal sheets, electroplated components, and specialized powder-coated layers.
Primary Industry Applications
Electronics and Semiconductors: Directly etches high-contrast markings onto PCB substrates, micro-switches, integrated circuit packaging, and electronic enclosures.
Automotive Supply Chains: Permanent laser engraving of VIN tracking tracking codes, serialization on engine blocks, transmission gears, high-temperature bearings, and heavy-duty braking components.
Medical Equipment Production: Delivers corrosion-resistant, passivation-safe marking on stainless steel surgical instruments, diagnostic equipment housings, and implantable orthopedic devices.
Hardware and Industrial Tools: High-contrast marking of sizing information and logo branding on industrial lock assemblies, cutting tools, metal fasteners, and measuring instruments.
Industrial Packaging Lines: High-speed marking of dynamic metrics, including automated batch numbers, expiration dates, and anti-counterfeiting codes on primary packaging.
FAQ
Q: Is the final mark susceptible to rubbing off or fading over time?
A: No, the laser process creates a permanent modification of the material surface through localized annealing, deep etching, or color-change carbonization. The resulting mark cannot peel, fade, or rub off, ensuring complete readability through harsh sterilization, abrasion, or chemical washdowns.
Q: Can the software generate variable data elements such as serialized numbering and complex 2D barcodes?
A: Yes, the control software generates sequential serial codes, calendar dates, production shifts, alpha-numeric identifiers, and standard barcode formats including Data Matrix codes, QR codes, and PDF417 variants. These fields can auto-increment natively or pull data directly from external databases.
Q: What modifications or customized solutions are available for specialized production demands?
A: We provide extensive tailoring options, which include modified enclosure footprints, varied laser power configurations from 20W to 100W, custom software plugin interfaces, automated pneumatic door lifts, and integration kits for industrial robotic loaders or rotary tables.
Q: What steps are required to initialize the machine upon delivery?
A: The enclosed system ships fully assembled within its crate. Once uncrated, it requires connection to a standard mains power line and a computer interface via the supplied USB line. The control parameters are pre-calibrated at the factory, allowing the system to be operational within a short window following installation.
Q: How does the enclosed design impact operator safety and environmental management?
A: The enclosure features specialized barrier glass rated to block the specific 1064nm infrared laser wavelength, containing all scattered radiation within the workstation. This design also keeps process smoke and debris contained, allowing a fume extractor to draw air from a single, closed volume for highly efficient particulate filtration.
