Product Overview

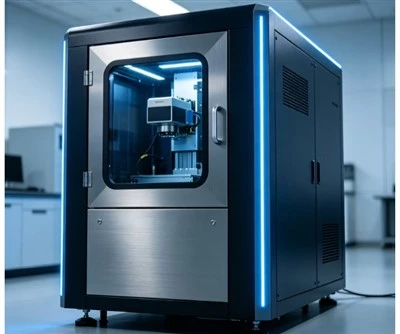

The Compact Enclosed Fiber Laser Marking Machine is a fully shielded, industrial-grade laser system engineered for high-speed, permanent surface modification and micro-machining. Utilizing a solid-state fiber laser source coupled with a high-speed digital galvanometer optical scanner, this system delivers precise beam positioning and excellent thermal stability under continuous shift operations.
The fully enclosed Class 1 laser safety housing provides complete optical isolation, protecting operators from scattered radiation and containing airborne particulates generated during ablation. This compact architecture features an integrated internal layout that minimizes factory floor footprints, making it suitable for both standalone manual workstations and multi-axis automated production line integration.
Technical Specifications
|
Parameter |
Specification |
|
Laser Source Type |
Raycus / MAX / IPG (Optional solid-state fiber laser) |
|
Available Laser Power |
20W / 30W / 50W / 60W / 100W |
|
Central Wavelength |
1064 nm |
|
Standard Marking Field |
110 mm × 110 mm (Optional: 150 mm × 150 mm / 175 mm × 175 mm / 200 mm × 200 mm / 300 mm × 300 mm) |
|
Maximum Scan Speed |
7000 mm/s |
|
Pulse Repetition Frequency |
20 kHz to 100 kHz (Varies by laser source selection) |
|
Minimum Track Width |
0.01 mm |
|
Minimum Character Height |
0.15 mm |
|
Repeatability Positioning Accuracy |
Plus or minus 0.002 mm |
|
Thermal Management |
Forced Air Cooling |
|
Electrical Requirement |
Single Phase AC 220V (50/60Hz) / Configurable to 110V (50/60Hz) |
|
Control Software |
EZCAD Architecture |
|
Vector/Raster File Compatibility |
DXF, PLT, AI, BMP, JPG, PNG |
|
Chassis Dimensions |
Configuration Dependent (Custom engineering available) |
Key Engineering Features & System Details
Fully Shielded Class 1 Laser Safety Enclosure
- Radiation Isolation: The heavy-duty steel enclosure blocks direct and scattered 1064nm laser radiation, ensuring compliance with international industrial safety regulations.
- Dual-Circuit Safety Interlocks: Redundant mechanical interlock switches automatically terminate laser emission if the enclosure door is opened during processing.
- Integrated Extraction Port: Features a dedicated extraction flange to interface directly with industrial fume purification systems, maintaining negative pressure inside the working chamber.
High-Speed Digital Galvanometer & Optical System
- Dynamic Response: High-torque digital servo drivers minimize settling time and drift, enabling marking speeds up to 7000 mm/s without geometric distortion.
- Optical Stability: Field lenses feature multi-layer anti-reflective coatings to ensure uniform power density across the entire marking field.
- Dual Red-Light Positioning: Dual coaxial red-light pointers project a combined focal point, allowing operators to verify target alignment prior to firing the laser.
Maintenance-Free Industrial Laser Source
- Extended Operational Lifespan: The solid-state module delivers up to 100,000 hours of operational life before diode degradation occurs.
- No Consumable Components: Eliminates the need for internal lamps, mirrors, or gas refills, drastically reducing recurring operational overhead.
- Shielded Power Supplies: Internal power units ensure stable voltage delivery to the galvo drivers, eliminating marking jitter.
Compact Workspace & Mechanical Foundation
- Space Optimization: The centralized control cabinet integrates the power supply, laser source, and cooling systems into a single modular frame.
- Z-Axis Linear Pillar: Precision lead-screw mechanics with a digital height scale for rapid focal distance adjustment during batch changeovers.
- T-Slot Working Platens: Anodized aluminum workspace equipped with standardized grid patterns for secure mounting of custom jigs, rotary axes, or automated feeding trays.
Materials and Process Capabilities
Compatible Substrates
The 1064nm wavelength interacts optimally with a wide range of high-density materials:
- Metals: Stainless steel, carbon steel, aluminum (anodized and raw), brass, copper, titanium, and various industrial alloys.
- Plastics & Polymers: ABS, polycarbonate (PC), polyamide (PA), polyethylene, and high-density engineering plastics.
- Ceramics & Composites: Industrial alumina ceramics, silicon wafers, and coated composite substrates.
Application Breakdown by Industry
- Automotive Engineering: Permanent traceability codes on engine components, transmission gears, braking system parts, and VIN plates.
- Electronics & Semiconductors: Micro-marking on IC chips, printed circuit board (PCB) substrates, connectors, and smartphone aluminum housings.
- Medical Device Manufacturing: Unique device identification passivated marking on surgical stainless steel instruments and orthopedic implants without altering surface corrosion resistance.
- Precision Tools & Hardware: High-contrast depth marking on cutting tools, drill bits, bearings, and industrial valves.
Manufacturing Quality Control Standards
Interferometric Calibration: Every galvanometer scanner undergoes laser interferometric calibration to map and correct geometric distortions across the field lens grid.
48-Hour Continuous Stress Testing: The complete laser assembly is subjected to a continuous 48-hour burn-in period, monitoring power stability across the entire duty cycle.
Oscilloscope Signal Verification: Digital control signals and encoder feedback loops are verified via high-frequency oscilloscopes to eliminate electromagnetic interference issues.
Enclosure Optical Leak Testing: Post-assembly inspections verify zero optical leakage outside the safety cabinet using calibrated infrared power meters.
Export Logistics and Protective Packaging
Vapor-Barrier Vacuum Sealing: Equipment is encased in anti-static vacuum foil bags with industrial desiccant packets to prevent moisture corrosion during ocean transit.
Heavy-Duty Plywood Crates: Fully enclosed, heat-treated wooden crates designed for forklift handling and stack stability inside shipping containers.
Internal Shock Absorption: High-density polyethylene foam blocking secures the Z-axis pillar and laser cabinet against high-frequency transport vibrations.
FAQ
Q: What is the expected maintenance schedule for this enclosed fiber laser system?
A: The solid-state fiber laser source operates without internal consumable parts. Standard preventative maintenance is limited to cleaning the external protective window of the field lens with optical-grade alcohol and keeping the internal ventilation dust filters clear. The system does not require gas refills, flashlamp replacements, or mirror realignments.
Q: Can this machine mark variable data matrices and dynamically generated serialization codes?
A: Yes. The control architecture interfaces directly with variable databases, allowing the system to automatically generate and update linear barcodes, DataMatrix codes, QR codes, sequential serial numbers, and real-time shift stamps during continuous production cycles.
Q: How does the safety interlock mechanism respond if the protective door is opened mid-cycle?
A: The safety enclosure uses a dual-channel force-guided interlock circuit. Opening the door immediately breaks the safety circuit, which trips a hardware shutter or cuts power to the laser driver in milliseconds. The galvanometer continues its path without emitting light, ensuring absolute operator protection from specular reflection.
Q: What optical configurations are required to scale up the standard marking area?
A: The standard 110mm field lens can be swapped for alternative focal lengths to achieve working fields up to 300mm. Note that increasing the field size lengthens the working distance and increases the focal spot diameter, which reduces localized energy density. For deep engraving, smaller field lenses are recommended.
